Dixon

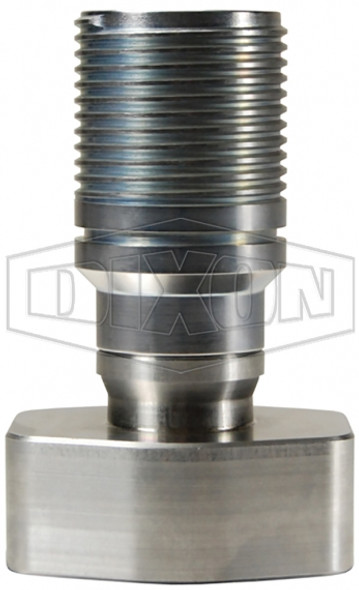

WS10FH10 - WS-Series Heavy-Duty Wingstyle Code 62 Flange Head Plug

SKU:
WS10FH10
Availability:
Usually Ships Within 24 Hours
Weight:
5.90 LBS
*Images are for visual reference only.

Description

Details

Applications

Used extensively in oil field and off shore oil rig applications

Compatibility & Interchange Data

  • Snap-Tite 75-Series, Hydraulics Inc. Series- 5TV, DNP VFF-HD
  • Stucchi VOF, Faster OGV, Eaton FD85, Holmbury LC

Construction

  • Machined components are manufactured using solid steel bar stock.
  • Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
  • Steel componentry is plated using ROHS Compliant Zinc Nickel for superior corrosion resistance.
  • Nitrile (Nitrile Rubber) seals are standard, providing a temperature range of -40°F to +250°F (-40°C to +121°C)
  • PTFE anti-extrusion ring protects main coupling O-Ring from dynamic impulse pressure damage.
  • Main valve seal is 'housed' to improve seal integrity during pressurized connection/disconnection.

Features

  • Interchanges with Snap-Tite 75 series
  • Contact Dixon ® for pressure ratings and other technical information
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
