Dixon

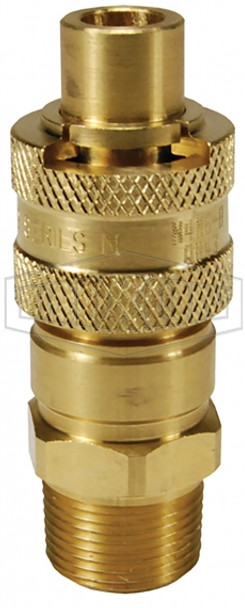

N4M3-B - Dix-Lock® N-Series Interchange Male Head x Male Threaded End Plug
(No reviews yet)
Write a Review
- SKU:
- N4M3-B
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 0.72 LBS
*Images are for visual reference only.
Description
Details
Available Options
316 stainless steel available in some versions upon request, contact Dixon
Compatibility & Interchange Data
- Bowes Interchange Bayonet Style
- Interchangeable with Bowes 51000-Series, National Series 'B', Dixon Dixlock, MacDonald Quick-Action
Construction
- Machined components are manufactured using solid bar stock.
- Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
- Coupling sleeve constructed of cast zinc steel
Safety Notes
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Specifications
Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 Bar) Maximum Working and 8,200 PSI (865 Bar) Burst
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
