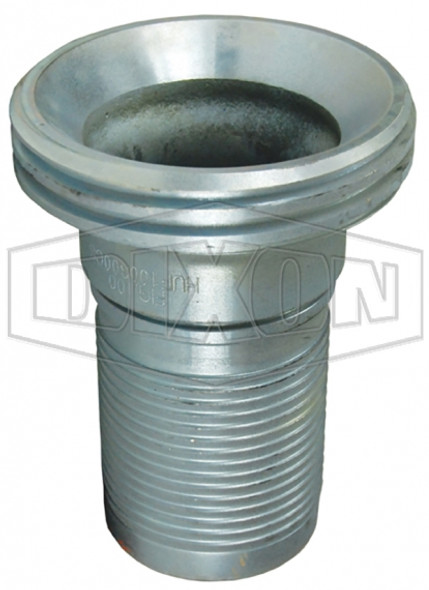

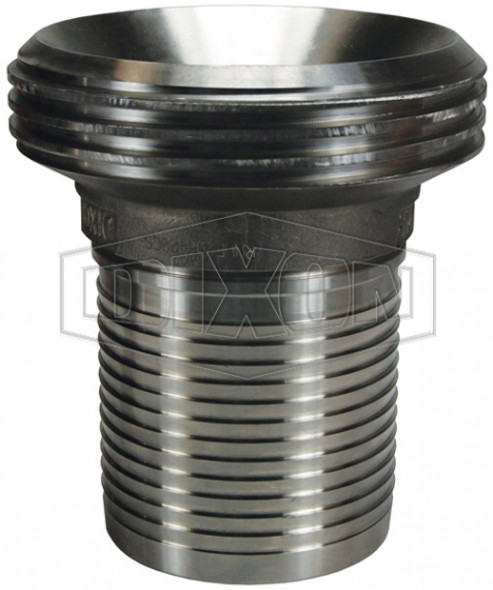

HUF206400CS - Dixon Female Frac Fitting

Used in the fast paced transfer of water and sand slurry at hydraulic fracturing sites.

Interchangeable with current fittings; phase them into your current operation

Machined iron to ASTM standards; all stems are zinc plated

• One-piece design eliminates leak path experienced with two-piece threaded systems
• Long lasting and dependable hammer nut is forged to ASTM 105N standards

Water and petroleum transfer hoses rated from 100 to 300 PSI WP (4:1 SF) have excellent test results with the standard King Crimp ferrules CF400-xxCS)

400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with: 4" size requires heavy duty (HD) crimp ferrules, CF400-6CSHD through CF400-16CSHD and heavy duty stems

Machined malleable iron stems to ASTM A47 standard

Designed to work with Dixon King Crimp Ferrules.
