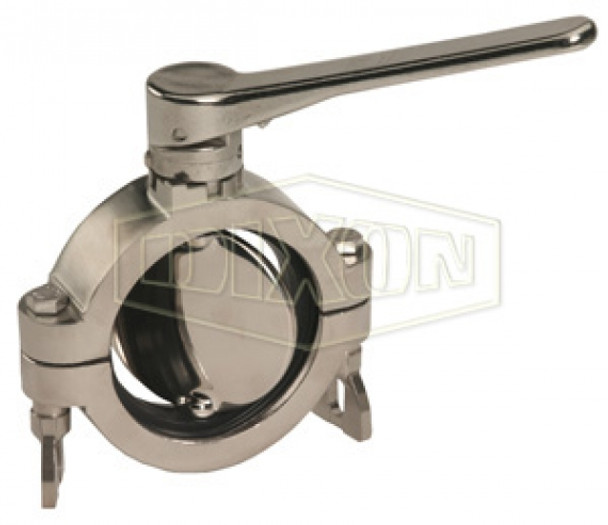

B5102E300-A - B5102-Series Butterfly Valve Clamp End

• Various automatic operations available
• Can be modified for lockout / tagout

• All wetted surfaces are sanitary finish 316L stainless steel
• PTFE valve disc bushings reduce friction and increase cycle life
• 3-position reversible handle

• All sizes use only 3/4" of line space
• The grooved clamp housing connects directly to the corresponding sanitary clamp size
• 100% tested / 100% inspected
• Field serviceable (no special tools required)

Pressure rating (PSI), Flow Coefficient (CV), Assembly Torque (in. lbs.) and Break Torque (in. lbs.) information supplied is based on water media at 68°F

• Break torque: 350 in. lbs.
• Assembly torque: 28.8 in. lbs.
• Flow coefficient: 372 CV
